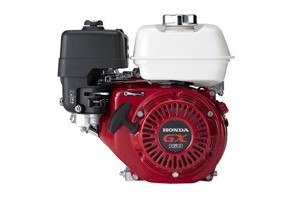

GX160 Honda Engine
- Engine Type – Air-cooled 4-stroke OHV
- Bore x Stroke – 68 X 45 mm
- Displacement – 163 cm3

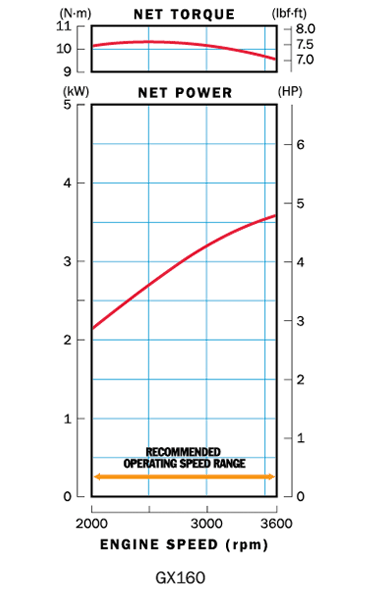

- Net Power Output – 4.8 HP (3.6 kW) @ 3,600 rpm
- Net Torque – 7.6 lb-ft (10.3 Nm) @ 2,500 rpm
- PTO Shaft Rotation – Counterclockwise (from PTO shaft side)
- Compression Ratio – 9.0 : 1
- Lamp/Charge coil options – 25W, 50W / 1A, 3A, 7A
- Carburetor – Butterfly
- Ignition System – Transistorized magneto
- Starting System – Recoil Starter
- Lubrication System – Splash
- Governor System – Centrifugal Mechanical
- Air cleaner – Dual Element
- Oil Capacity – 0.61 US qt. (0.58 L)
- Fuel – Unleaded 86 octane or higher
- Fuel Tank Capacity – 3.3 U.S. qts (3.1 liters)
- Dry Weight – 33 lbs. (15.1 kg)
