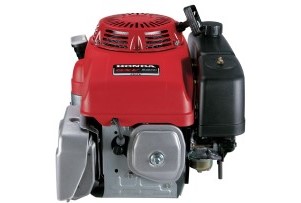

GXV390 Honda Engine
- Engine Type – Air-cooled 4-stroke OHV
- Bore x Stroke – 88 X 64 mm
- Displacement – 389 cm3

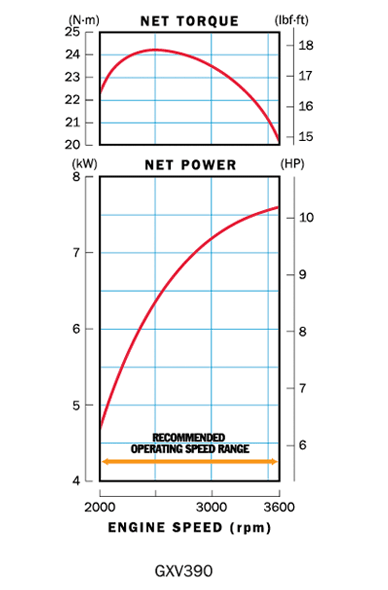

- Net Power Output – 10.2 HP (7.6 kW) @ 3,600 rpm
- Net Torque – 17.8 lb-ft (24.2 Nm) @ 2,500 rpm
- PTO Shaft Rotation – Counterclockwise (from PTO shaft side)
- Compression Ratio – 7.7:1
- Lamp/Charge coil options – 3A / 1A, 3A, 10A
- Carburetor – Float Type
- Ignition System – Transistorized magneto
- Starting System – Recoil/Electric
- Lubrication System – Pressure and splash
- Governor System – Centrifugal Mechanical
- Air cleaner – Dual Element
- Oil Capacity – 1.2 US qt (1.1l)
- Fuel – Unleaded 86 octane or higher
- Fuel Tank Capacity – 2.2 US qts (2.1 liters)
- Dry Weight – 76.3 lb (33.3 kg)
