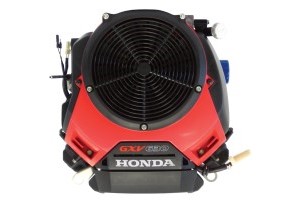

GXV630 Honda Engine
- Engine Type – Air-cooled 4-stroke OHV
- Bore x Stroke – 78 X 72 mm
- Displacement – 688 cm3

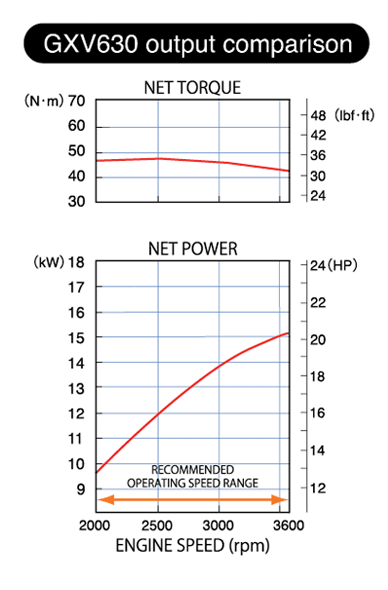

- Net Power Output – 20.8 hp (15.5 kW) @ 3,600 rpm
- Net Torque – 35.6 lbs ft (48.3 Nm) @ 2,500 rpm
- PTO Shaft Rotation – Counterclockwise (from PTO shaft side)
- Compression Ratio – 9.3:1
- Lamp/Charge coil options – 2.7A, 17A, 26A
- Carburetor – Horizontal type, two barrel butterfly valve, internal vent
- Ignition System – Digital CDI with variable ignition timing
- Starting System – Electric
- Lubrication System – Forced lubrication
- Governor System – Mechanical
- Air cleaner – Dual Element
- Oil Capacity – 2.3 US qt (2.2l)
- Fuel – Unleaded 86 octane or higher
- Dry Weight – 98.3 lb (44.7 kg)
